Die Mould Components
Leading Manufacturers and Wholesaler of Self-Lubricating Bushings, Mould Die Springs, Mild Steel Mould Ejector Pin and Guide Pillar and Bush from Rajkot.
| Business Type | Manufacturer, Supplier |
| Material | Steel |
| Diameter Range | 10 mm To 100 mm |
| Length Range | 50 mm To 500 mm |
| Tolerance | ±0.005 Mm |
| Hardness (Pillar) | 58-62 HRC (after Heat Treatment) |
| Hardness (Bush) | 90-120 HB (bronze) |
| Surface Finish | Ground And Polished (Ra 0.2-0.4 µm) |
| Temperature Resistance | Up To 300°C |
| Application | Injection Moulds, Press Tools, Die-casting Moulds, Precision Tooling |

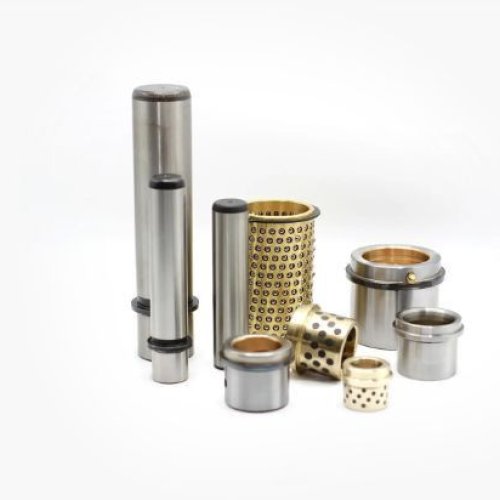

We offer high-quality self-lubricating bushings made of steel with a tolerance of ±0.005 mm, ideal for injection molds. Available in diameter range 10 mm to 100 mm and length range 50 mm to 500 mm. These bushings have a hardness of 58-62 HRC (pillar) and 90-120 HB (bronze), ensuring durability. With a surface finish of ground and polished (Ra 0.2-0.4 µm), they provide smooth operation. Temperature resistant up to 300°C, these bushings are perfect for various industrial applications. As a leading manufacturer and supplier, we deliver reliable solutions for your machinery needs.
Read More...
| Business Type | Manufacturer, Supplier |
| Material | Chrome Silicon Steel |
| Outer Diameter Range | 10 mm To 63 mm |
| Free Length | 25 Mm To 300 Mm |
| Hardness | 44-52 HRC |
| Operating Temperature | Up To 250°C |
| Spring Ends | Ground Flat And Parallel |
| Application | Injection Moulds, Press Tools, Die Casting, Jigs & Fixtures |
| Business Type | Manufacturer, Supplier |
| Certification | ISI Certified |
| Country of Origin | India |
| Material | Mild Steel |
| Diameter Range | 1 mm To 25 mm |
| Tolerance | ±0.01 Mm |
| Hardness | 40–50 HRC (surface Hardened If Required) |
| Finishing | Polished |
| Application | Plastic Injection Molds, Die-casting Molds, Tool & Die Sets |
| Business Type | Manufacturer, Supplier |
| Certification | ISI Certified |
| Country of Origin | India |
| Outer Diameter Range | 10 mm To 100 mm |
| Length Range | 50 mm To 500 mm |
| Surface Finish | Polished |
| Hardness | 58-62 HRC (after Heat Treatment) |
| Temperature Resistance | Up To 250°C |
